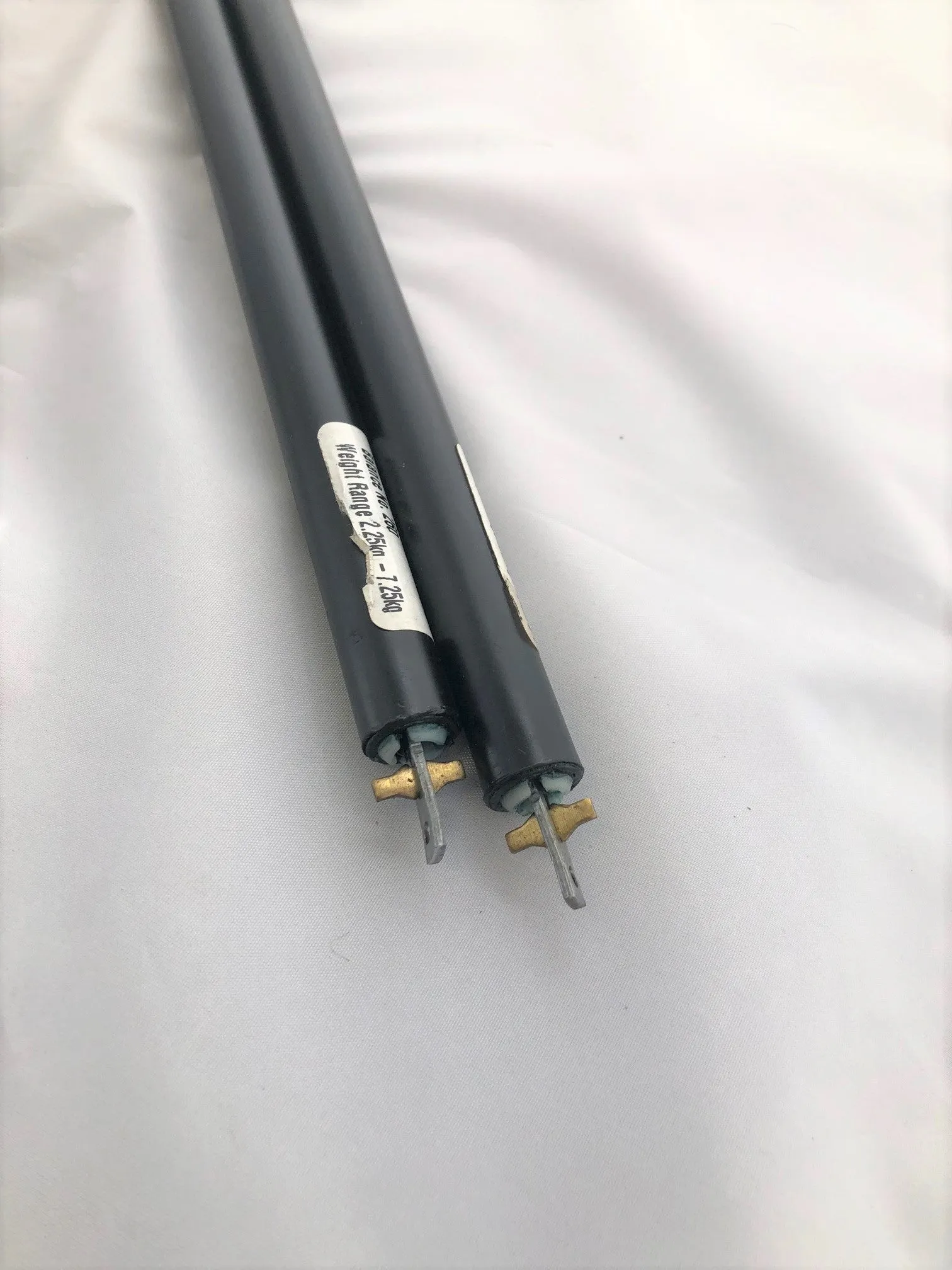

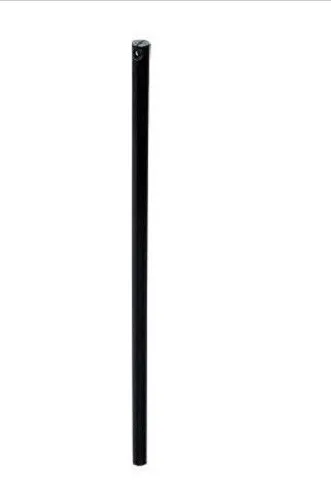

Spiral Balance, Aluminium Window - # 600 Weight range 3 (10-14kg)

Narrow and fully sealed variable pitch spiral and torsion spring balance and foot system for Timber or Aluminium Double Hung windows.

Balance Number: 600

Closed dimension: 927mm (black tube length)- requires no more than 7 tension turns

Sold singularly (ADD number required)

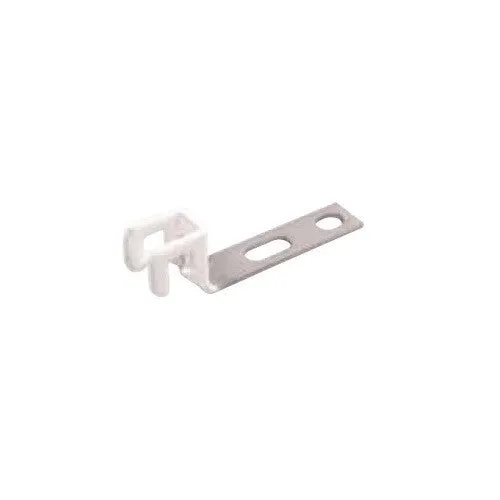

Used in conjunction with Adjustable or TFD foot

Foot sold separately

It is recommended that spiral balances are supported in a 15mm x 15mm rebate

Maximum of 7 x pre-tension turns required prior to finalizing installation
